pupilometer_vistainternational

Lianyungang Vista International Co., Ltd.

FEATURES

1.Easy to replace the battery. Power off automatically by lying down after operation, while power on automatically when picking it up.

2.Power can be conserved and the lift time of the battery is 6 months and more.

SPECIFICATIONS:

1.Method of measurement: cornea reflaction light coincidence method.

2.Range of measurement: 45 to 82mm (both eyes), 22.5-41mm(each eye)

3.Graduation: 0.5mm

4.Range of focusing point : 30cm to infinity

5.Auto off time: 1 minute

6.Power source：DC 4.2V

7.Size：310*230*110mm

Weight： 0.8kg

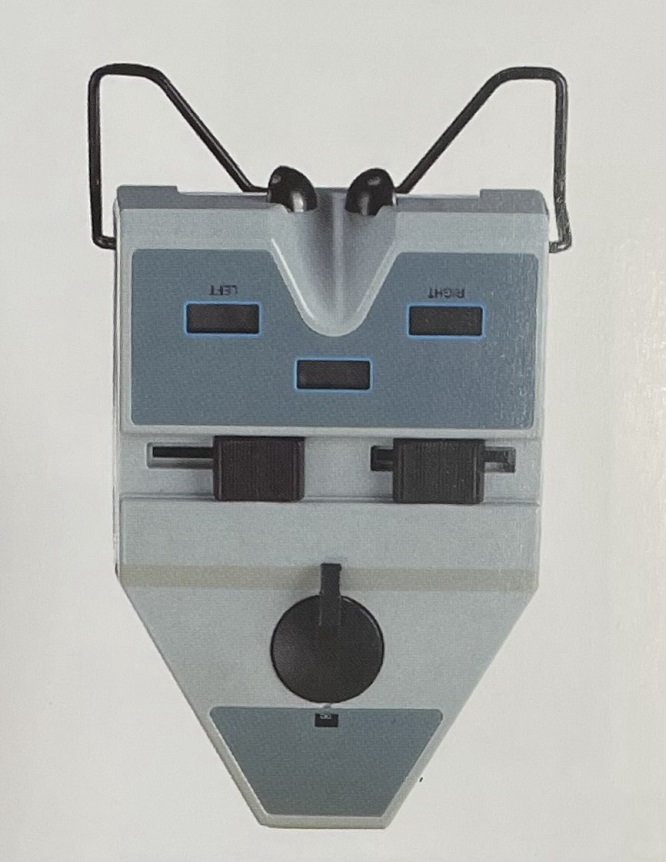

Pupilometer VS-132AT

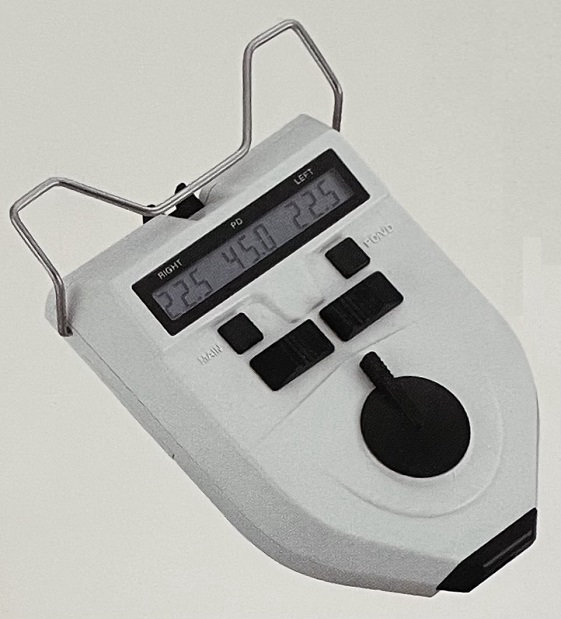

Pupilometer VS-132A1

FEATURES

1.Easy to replace the battery. Power off automatically by lying down after operation, while power on automatically when picking it up.

2.Power can be conserved and the lift time of the battery is 6 months and more.

SPECIFICATIONS:

1.Method of measurement: cornea reflaction light coincidence method.

2.Range of measurement: 45 to 82mm (both eyes), 22.5-41mm(each eye)

3.Graduation: 0.5mm

4.Range of focusing point : 30cm to infinity

5.Auto off time: 1 minute

6.Power source：DC 4.2V

7.Size：310*230*110mm

Weight： 0.8kg

Features:

1.The “corner reflection light coincidence method” is used.

2. This operates by aligning luminous point on the pupils with measuring line.

3. Results are displayed digitally. 3 measurements are given: right, right+left, left.

4. Results are accurate to within 0.25mm.

5. Measurements can be made for a single eye or for both eyes.

6. Possible to measure PD of focusing-point distances ranging from 30cm to infinity.

7. Automatically switches OFF one minute after operation is completed, thus conserving power.

8. Distances from tops of the corner to lenses or frames can also be measured.

MAIN TECHNICAL INDEXES:

1.Method of measurement: cornea reflection light coincidence method，

2.Range of measurement: 48 to 77mm (both eyes) / 50 to 50mm (both eyes) ; 24 to 38.5mm (each eye) / 25 to 40mm (each eye)

3.Display: LED digital display

4.Graduations: 0.5mm

5.Range of focusing point: 30 to infinity

6.Power supply: 4.5V DC (R03 batteries X3)

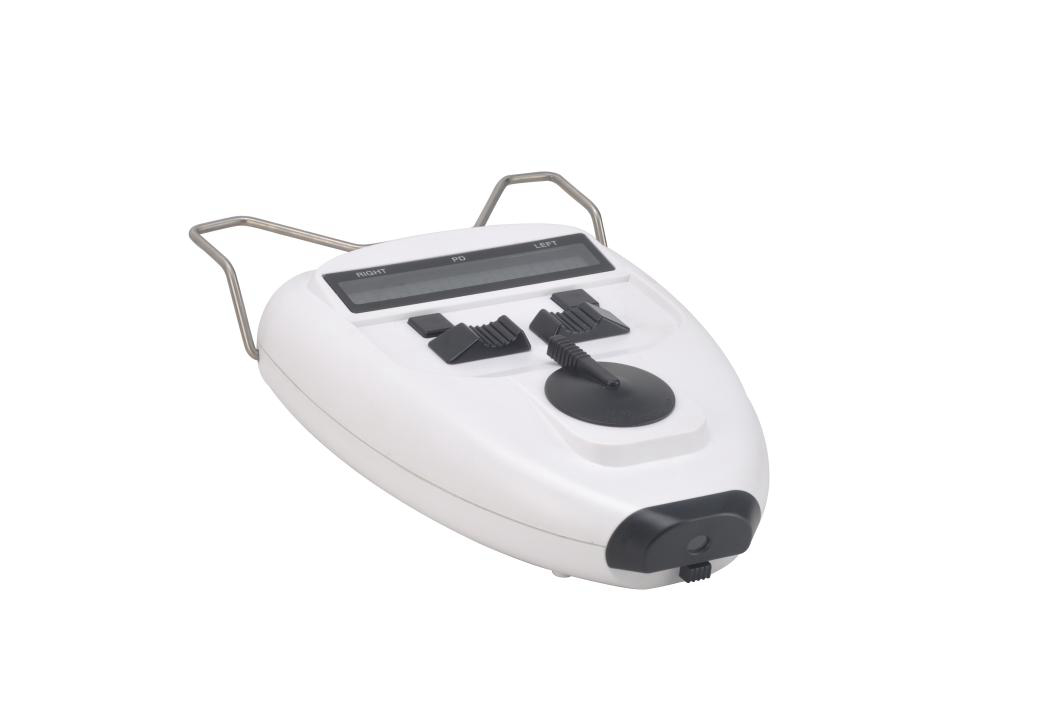

Pupilometer VS-132C1
