Features:
1.Colorful touch screen
2.With printer and PD, inner UV part
3.Automatic recognition of single and progressive lens

Specifications:
Measuring range：
Sphere：0 to ±25D（0.01D/0.12D/0.25D steps)
Cylinder: 0 to ±9.99D（0.01D/0.12D/0.25D steps)
Axis: 0°to 180°（1°step)
ADD: 0 to 9.99D（0.01D//0.12D/0.25D steps)
Prism degree:: 0 to 15△(0.01/012/0.25△ steps)
Mode:
Cylinder mode: +, +/-, -
Prism: X-Y, P-B
Contact lens: soft/hard
Measure mode: single /progressive/automatic recognition contact lens
Others:
Diameter of lens: Φ20-108mm
PD: 40~90mm, 0.50mm steps
Speed: 0.1S
ABBE: 30~60
Display: 5.6” TFT LCD
Printer: Thermal print
Dimensions: 222*161*372mm
Package: 515*320*360
Weight: 5kgs
Power supply: 100~240V 50/60Hz

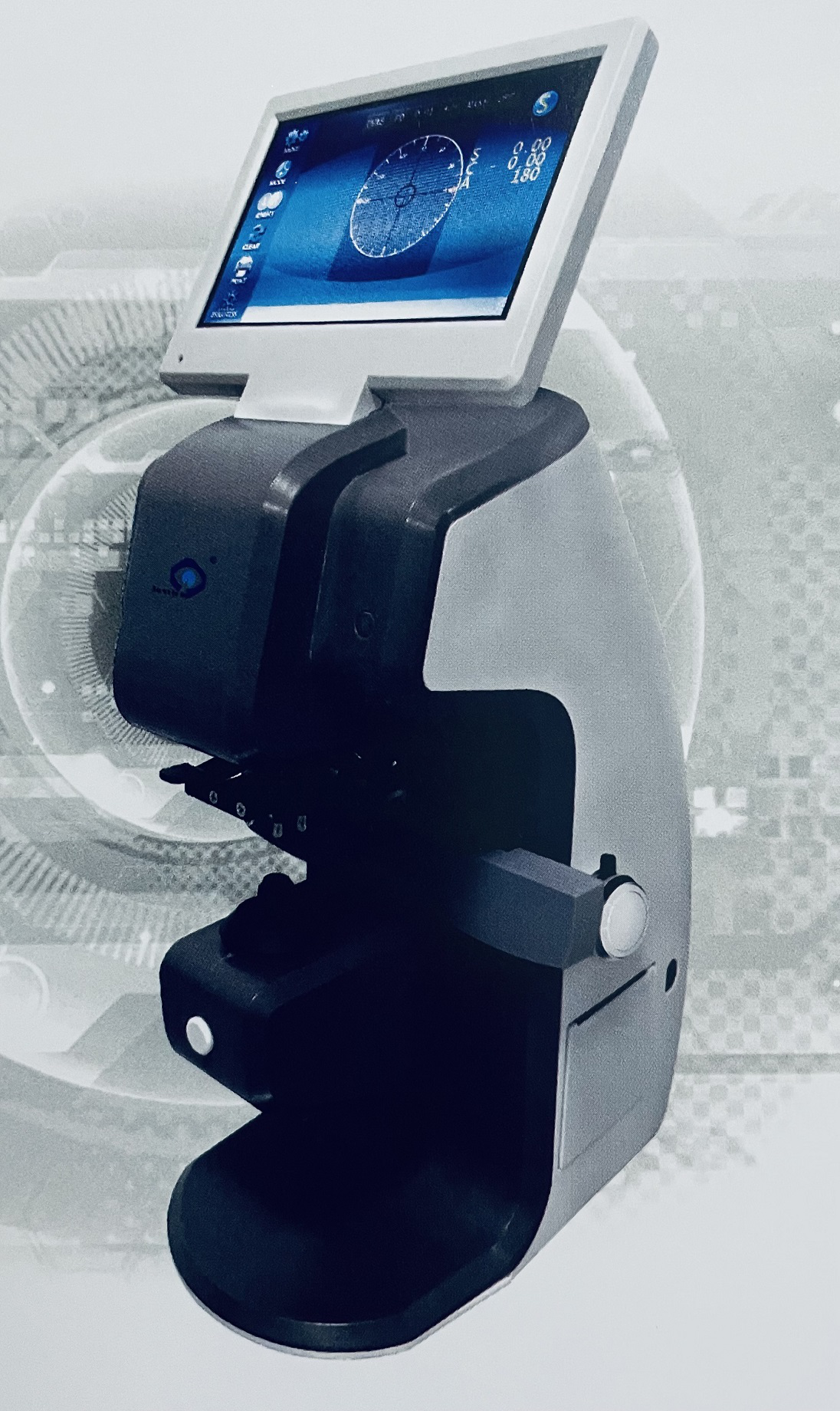

Lensmeter VS-1903

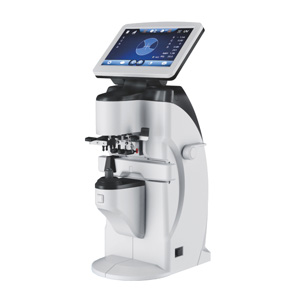

Lensmeter VS-1910

Features:
1.Measurement of PD, PH and PCL (progressive channel length)
2.New capacitive touch panel with high resolution.
3.The wavelength of UV and green light can be measured simultaneously.
4.Blueteeth, RS232 serial port, USB, WIFI, 4 forms of data communication.
5.Fine marking pnes and lens holder, magnetic and stable sliding nosepiece.

Specifications:
Measuring range：
Sphere：0 to ±25D（0.01D/0.12D/0.25D steps)
Cylinder: 0 to ±9.99D（0.01D/0.12D/0.25D steps)
Axis: 0°to 180°（1°step)
ADD: 0 to 9.99D（0.01D//0.12D/0.25D steps)
Prism degree: 0 to 15△(0.01/012/0.25△ steps)
Mode:
Cylinder mode: +, +/-, -
Prism: X-Y, P-B
Contact lens: soft/hard
Measure mode: single /progressive/automatic recognition
Others:
Diameter of lens: Φ12-112mm
PD: 40~90mm, 0.50mm steps
Speed: 0.1S
ABBE: 30~60
Display: 7” TFT LCD
Printer: Thermal print
Dimensions: 180*255*455mm
Package: 620*390*390mm
Weight: 12kgs
Power supply: 100~240V 50/60Hz
Features:
1.Accurately measuring the low-degree lens below ±12D
2.Measuring the colored lens with 10% transmittance.
3.Displaying the PH value in screen.
4.Measuring the progressive lens accurately and quickly.
5.Optionally installing PD measuring instrument, UV measuring instruments and thermal printer.
6.User friendly interface with easy operation, fast measurement, high accuracy and good repetition.

Specifiactions：
Sphere：0 to ±25D（0.01D/0.06D/0.12D/0.25D steps)
Cylinder: 0 to ±10D（0.01D/0.06D/0.12D/0.25D steps)
Axis: 0°to 180°（1°step)
ADD: 0 to 10D（0.01D/0.12D/0.25D steps)
Prism: 0 to 10△(0.01△)
Diameter of sphere:Φ20-100mm
UV: Built in
Display: 7” TFT LCD touch screen resolution (800*480)
Printer: Thermal printer
Data interface: RS-232
Power source: AC100(±10%)～240(±10%)V, 50/60HZ, 40VA
Dimesion: 290*200*420mm
N.Weight: 5.5kg

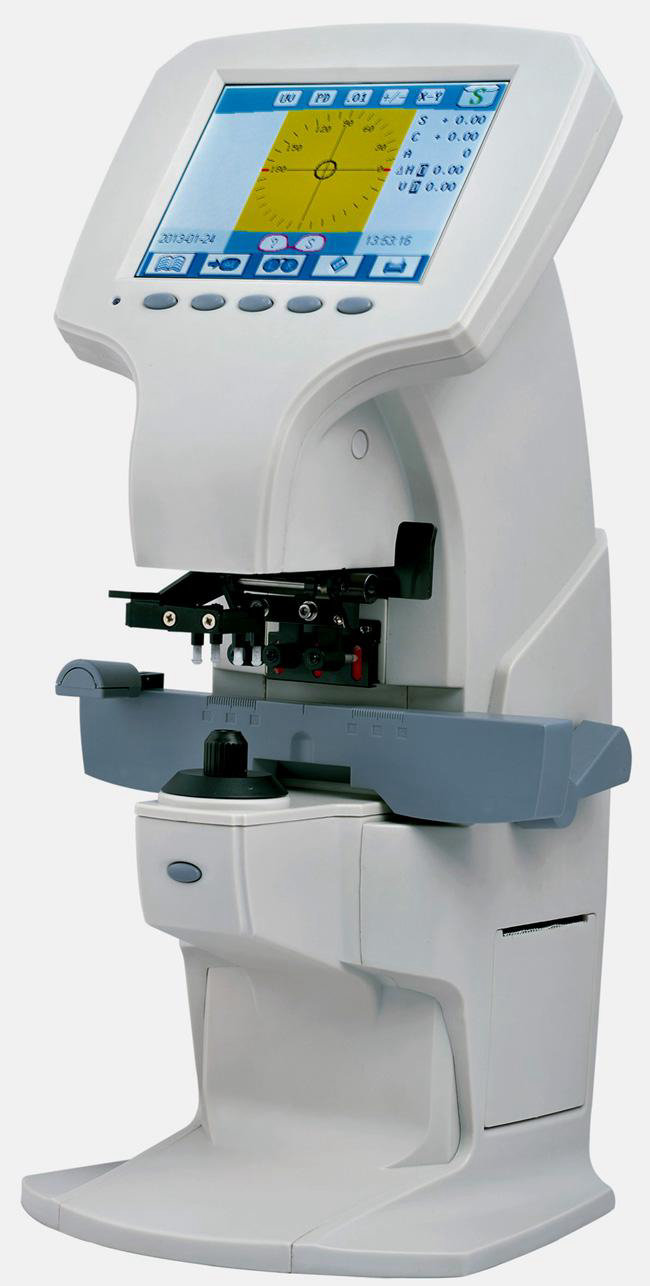

Lensmeter VS-1700

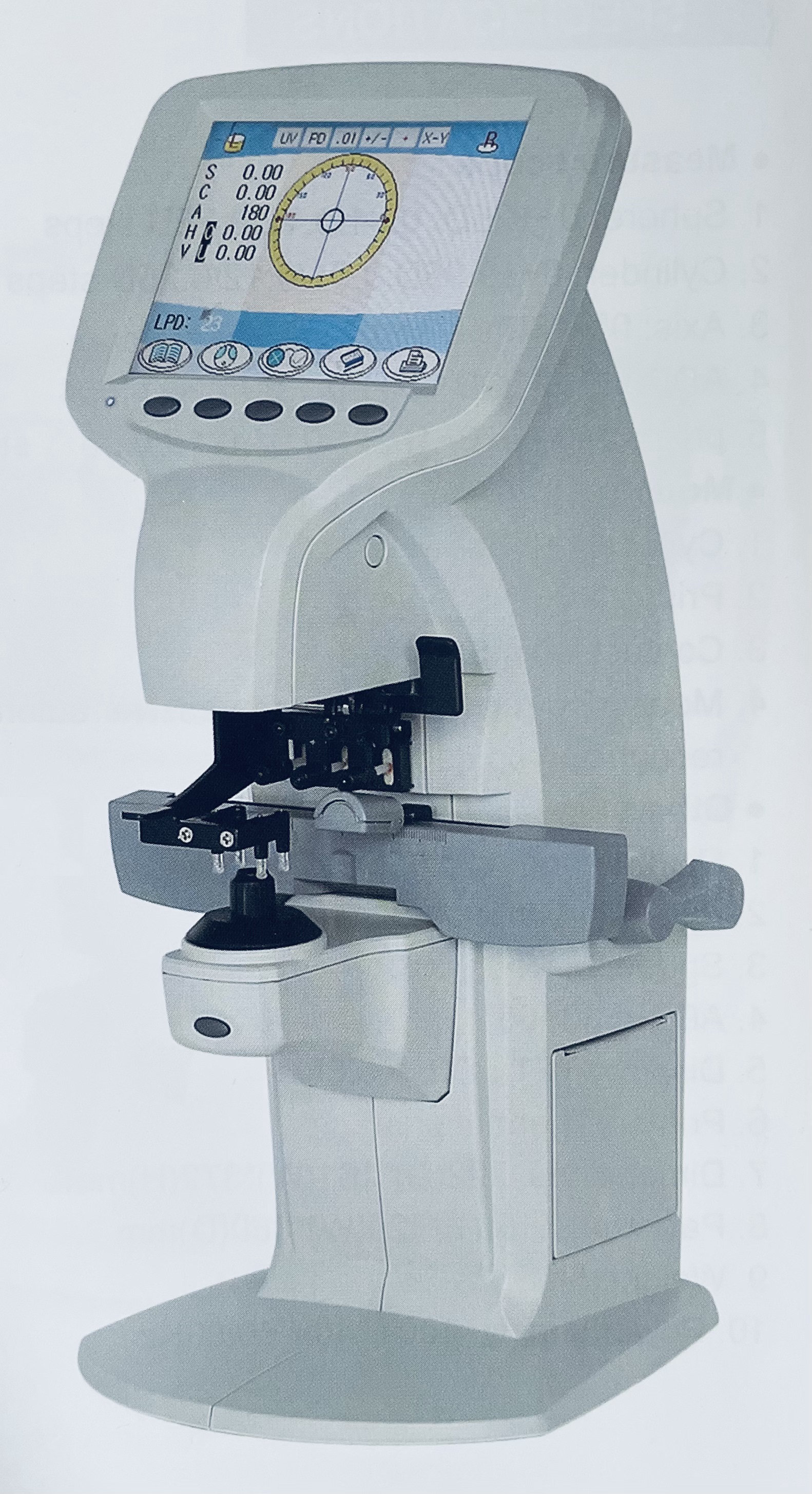

Lensmeter VS-1750

Features
1.Measureing the colored lens iwth 10% transmittance.
2. Measuring the progressive lens accurately and quickly.
3.Istalling PD measuing isntrument, UV and printer.
4.User friendly interface with easy operation
5.7 inch reversible LCD

Specifications:

Sphere：0 to ±25D（0.01D/0.06D/0.12D/0.25D steps)
Cylinder: 0 to ±10D（0.01D/0.06D/0.12D/0.25D steps)
Axis: 0°to 180°（1°step)
ADD: 0 to 10D（0.01D/0.12D/0.25D steps)
Prism: 0 to 10△(0.01△)
Diameter of sphere:Φ10-120mm
UV: Built in
Display: 7” TFT LCD touch screen resolution (800*480)
Printer: Thermal printer
Data interface: RS-232
Power source: AC100(±10%)～240(±10%)V, 50/60HZ, 40VA
Dimesion: 290*200*420mm
N.Weight: 5.5kg
Specifications:

1.Range of diopter measurement: 0 to ±20D
2.Minimum scale value: 0.125D at 0D to ±5D; 0.25D at ±5D to ±20D
3.Astigmatism axis of cylindric lens: 0°to 180°; minimum scale value 5°
4.Prism base angle:  0°to 180°, minimum scale value 5°
5.Regulation of ocular visibility: ±5D
6.Size of lens: 30mm to 90mm
7.Overall dimension of device: 46*17*24cm
8.Weight: 7.5kgs
Lighting lamp: 25W

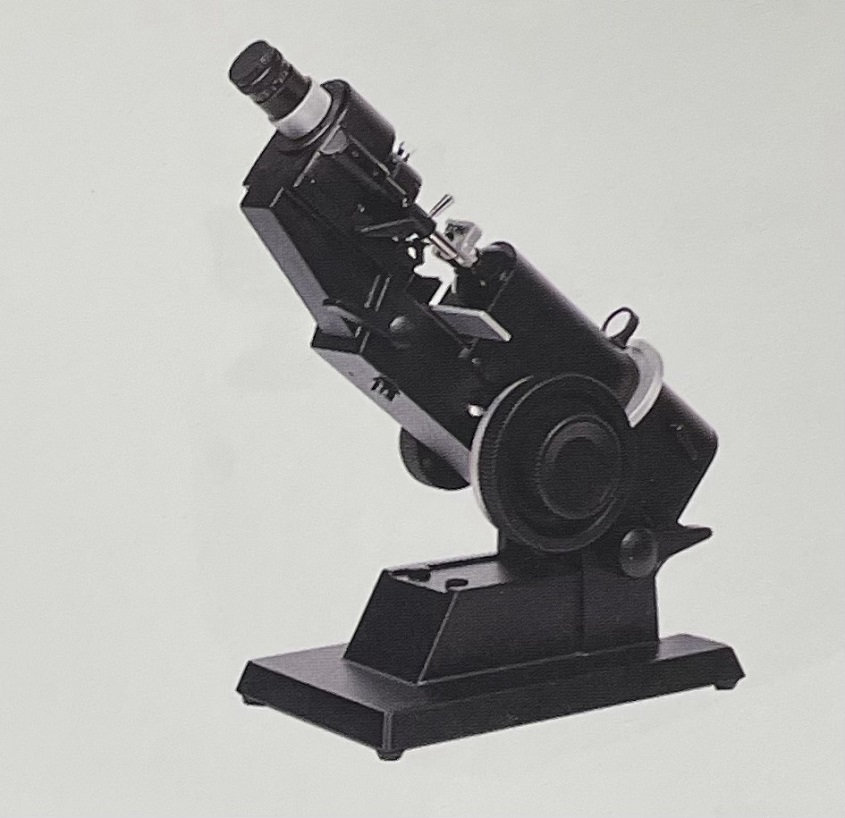

Lensmeter VS-1282
