High-quality optical microscope with extraordinary resolution to meet doctors' higher optical quality requirements for better accurate and safe diagnostic results.

The light of LED lamp is very similar to halogen lamp, which conforms to the operating habit of doctors. The LED lamp applied has a low color temperature and high illumination intensity, making view of retina without glare-colors much more vivid and view of cornea with nerves pop out better. The LED lamp has a longer life span and consumes less energy.

Our compact control panel with built-in power supply makes it much easier to install the slit lamp especially when installing the slit lamp on an ophthalmic unit. The users do not need to find place to install the chunky power box.There is a quick button on the control panel that enables doctors to shoot photos conveniently. Once they observe the suitable image to describe pathology, just press the capture button and the image will be recorded.

Microscope：
Type ：Galilean-Type
Magnification change ：Revolving Drum
Total magnification Ratio ：6x,10x, 16x, 25x, 40x（professional configuration）
Eyepieces ：12.5X
Angle between eyepieces ： 13º
Pupillary adjustment ：52mm～78mm
Diopter adjustment ：±6D
Field of view ：40× (5.7mm), 25× (8.9mm),16× (14mm), 10× (22.3mm), 6× (36.2mm)

Slit Illumination:
Slit width ：Continuously variable from 0 to 14mm
Lamp ：LED Lamp
Slit angle ：0º～180º (continuously adjustable both vertical and horizontal)
Slit inclination ：°4 step： 5º, 10º, 15º, 20º
Filters  ：Heat-absorbing filter, ND  filter,Red-free,Cobalt Blue
Aperture diameters ：14mm，10mm，5mm，3mm，2mm，1mm，0.2mm

Base:
Longitudinal movement ：115mm
Lateral movement ：110mm
Vertical movement ：30mm
Chin Rest:
Vertical movement ：80mm
Fixation ：LED
Input voltage: 220V/110V~±10％
Input frequency ：50Hz/60Hz
Power consumption ：30VA（max）
Output voltage ：Lamp  6V (continuously adjustable)Fixation  3V
Dimension & Weight:
Dimension ：770mm x 470mm x 570mm
Gross weight ：23kg
Net weight ：17kg

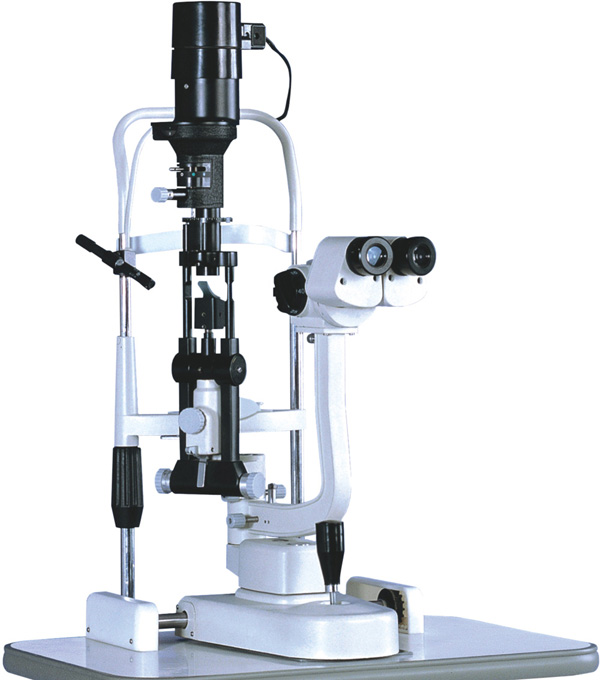

Slit Lamp VS-1365
Uniquely designed optical system makes slitlamp be able to project very sharp and homogeneous slitsand apertures. Doctors can obtain closer observationthrough  slit lamps and see all kinds of pathologies clearly. As a result, the diagnosis becomeseasier for the doctors who can dedicate more time andenergy to the treatment for the patients.

The light of LED lamp is very similar to halogenlamp, which conforms to the operating habit of doctors.The LED lamp applied has a low colortemperature and high illumination intensity, making view ofretina without glare-colors much more vivid and view ofcornea with nerves pop out better. The LED lamp has alonger life span and consumes less energy.

Slit Lamps provide rotational drums for doctorsto switch between different magnifications. The scales areengraved by laser and durable for long time use.It offers 3 magnifications (10X,16X,25X).              Pays full attentions to every detail in the designof slit lamps to deliver good user experience. Doctors cancontrol the illumination knob simultaneously with the little
finger without making hands leave the joystick.

Microscope：
Type ：Galilean-Type
Magnification change ：Revolving Drum
Total magnification Ratio ：10x, 16x, 25x
Eyepieces ：12.5X
Angle between eyepieces ： 13º
Pupillary adjustment ：52mm～78mm
Diopter adjustment ：±6D
Field of view ：(8.5mm),(13.5mm), (22mm),

Slit Illumination:
Slit width ：Continuously variable from 0 to 14mm
Lamp ：LED Lamp
Slit angle ：0º～180º (continuously adjustable both vertical and horizontal)
Slit inclination ：°4 step： 5º, 10º, 15º, 20º
Filters  ：Thermal safety,UV,Red-free,Cobalt Blue
Aperture diameters ：14mm，10mm，5mm，3mm，2mm，1mm，0.2mm

Base:
Longitudinal movement ：115mm
Lateral movement ：110mm
Vertical movement ：30mm

Chin Rest:
Vertical movement ：80mm
Fixation ：LED
Input voltage: 220V/110V~±10％
Input frequency ：50Hz/60Hz
Power consumption ：30VA（max）
Output voltage ：Lamp  6V (continuously adjustable)Fixation  3V
Dimension & Weight:
Dimension ：770mm x 470mm x 570mm
Gross weight ：24kg
Net weight ：16kg

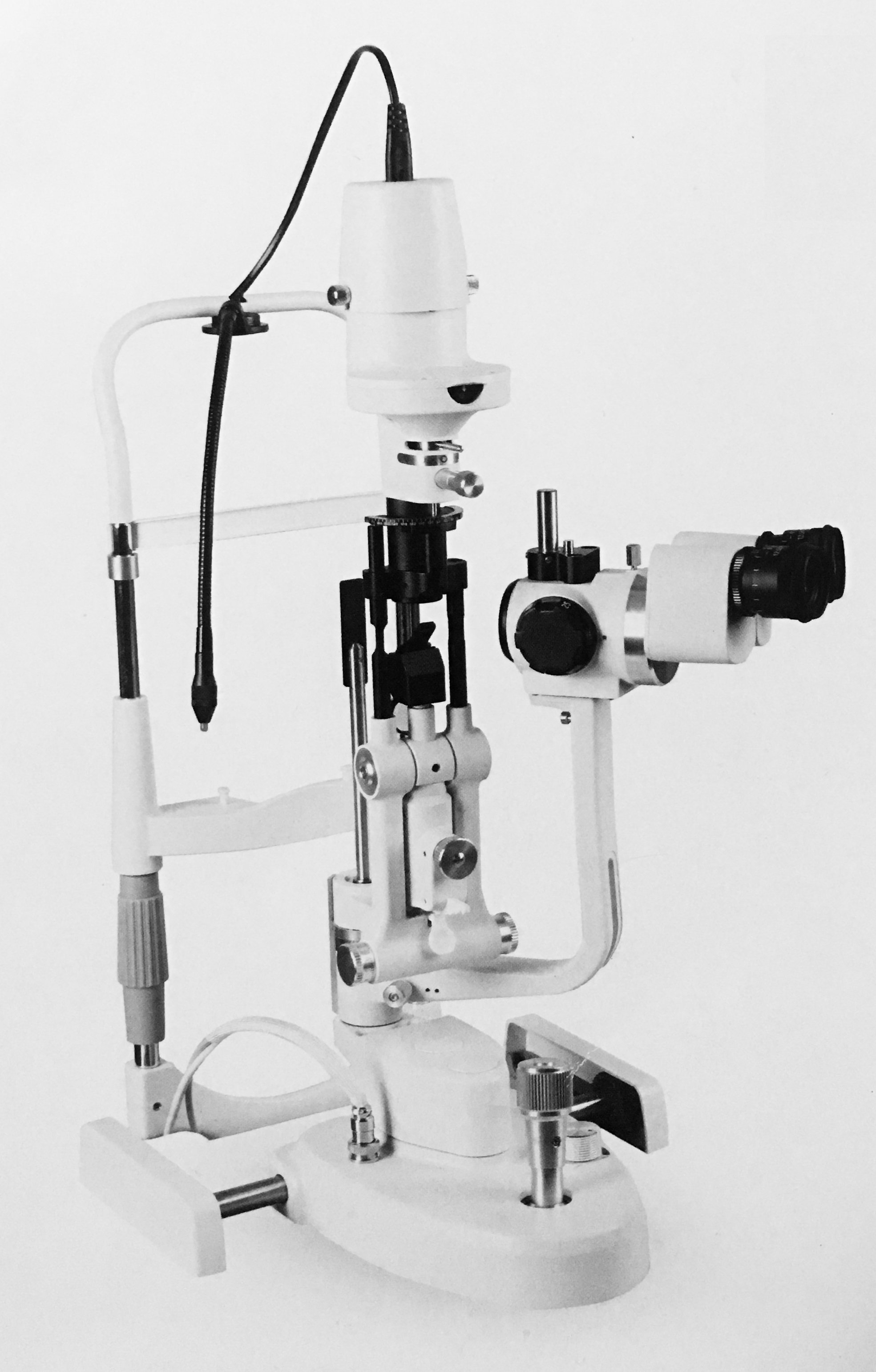

Slit Lamp VS-1363

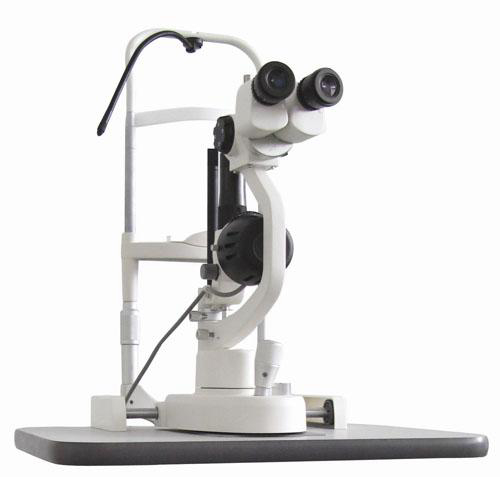

Slit Lamp VS-1352
Microscope：
Type ：Converging Stereoscope
Magnification change ：2 steps by objective lens rotation
Total magnification Ratio ：10x, 16x,
Eyepieces ：10x
Angle between eyepieces ： 13º
Pupillary adjustment ：52mm～78mm
Diopter adjustment ：+5D~-8D
Field of view ：18mm(10x),14.5mm (16x),

Slit Illumination:
Slit width ：Continuously variable from 0 to 14mm
Slit Length：1-14mm continuous
Continuously variable from 0 to 14mm
Lamp ：6V/20W halogen Lamp
Slit angle ：0º～180º
Slit inclination ： 5º, 10º, 15º, 20º
Filters  ：Heat-absorbing filter, ND filter,Red-free filter,Cobalt Blue filter
Aperture diameters ：14mm，10mm，5mm，3mm，2mm，1mm，0.2mm

Base:
Longitudinal movement ：110mm
Lateral movement ：110mm
Vertical movement ：30mm
Chin Rest:
Vertical movement ：80mm
Fixation ：LED
Power:
Input voltage: 220V/110V~±10％
Input frequency ：50Hz/60Hz
Power consumption ：30VA（max）
Output voltage ：Lamp  6V (continuously adjustable)
Fixation  3V
Dimension & Weight:
Dimension ：770mm x 470mm x 570mm
Gross weight ：23kg
Net weight ：17kg
Microscope：
Type ：Converging Stereoscope
Magnification change ：2 steps by objective lens rotation
Total magnification Ratio ：10x, 16x,
Eyepieces ：10x
Angle between eyepieces ： 13º
Pupillary adjustment ：52mm～78mm
Diopter adjustment ：+5D~-8D
Field of view ：Æ18mm(10x),Æ14.5mm (16x),

Slit Illumination:
Slit width ：Continuously variable from 0 to 14mm
Slit Length：1-14mm continuous
Continuously variable from 0 to 14mm
Lamp ：6V/20W halogen Lamp
Slit angle ：0º～180º
Slit inclination ： 5º, 10º, 15º, 20º
Filters  ：Heat-absorbing filter, ND filter,Red-free filter,Cobalt Blue filter
Aperture diameters ：Æ14mm，Æ10mm，Æ5mm，3mm，Æ2mm，Æ1mm，Æ0.2mm

Base:
Longitudinal movement ：110mm
Lateral movement ：110mm
Vertical movement ：30mm
Chin Rest:
Vertical movement ：80mm
Fixation ：LED
Power:
Input voltage: 220V/110V~±10％
Input frequency ：50Hz/60Hz
Power consumption ：30VA（max）
Output voltage ：Lamp  6V (continuously adjustable)
Fixation  3V
Dimension & Weight:
Dimension ：770mm x 470mm x 570mm
Gross weight ：23kg
Net weight ：17kg

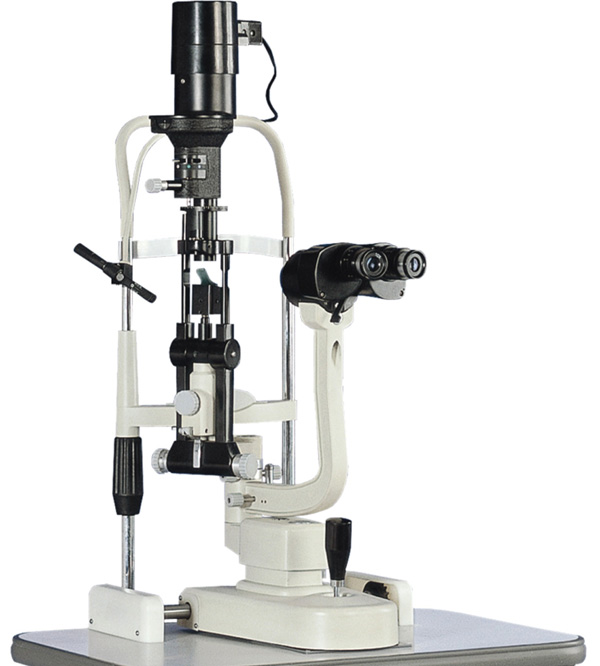

Slit Lamp VS-1265
Microscope：
Type ：Galilean-Type
Magnification change ：Revolving Drum
Total magnification Ratio ：6x,10x, 16x, 25x, 40x
Eyepieces ：12.5X
Angle between eyepieces ： 13º
Pupillary adjustment ：52mm～78mm
Diopter adjustment ：±6D
Field of view ：5.5mm, 8.5mm, 13.5mm, 22mm,34.7mm
Slit Illumination:
Slit width ：Continuously variable from 0 to 14mm
Slit Length：1-14mm continuous
Lamp ：LED Lamp
Slit angle ：0º～180º (continuously adjustable both vertical and horizontal)
Slit inclination ： 5º, 10º, 15º, 20º
Filters  ：Heat-absorbing filter, ND filter,Cobalt Blue
Aperture diameters ：14mm，8mm，3.5mm， 0.5mm

Base:
Longitudinal movement ：90mm
Lateral movement ：100mm
Vertical movement ：30mm

Chin Rest:
Vertical movement ：80mm
Fixation ：LED
Power:
Input voltage: 220V/110V~±10％
Input frequency ：50Hz/60Hz
Power consumption ：30VA（max）
Output voltage ：Lamp  6VFixation  3V
Dimension & Weight:
Dimension ：770mm x 450mm x 550mm
Gross weight ：22kg
Net weight ：16kg
FEATURES:
1. The bulb and optical lens made of glass are imported from Germany.
2. All the lens are multi-coated, mildewproof and anti-reflection.
3. All the adaptors are universal.

MAIN TECHNICAL INDEXES:
1. Microscope Type: parallel included angle type.
2. Magnification: Five- step magnifications
3. Eye Piece: 12.5x
4. Total Magnification and field of View(mm): 6 X (Ø 33)、10 X ( Ø 22.5)、16 X ( Ø 14)、25 X ( Ø8.8)、40 X ( Ø 5.5)
5. Range of Pupil Distance (mm): 55 ~ 75
6. Adjustment of Diopter: -5D ~ +3D
7. Slit Width (mm): 0 ~ 9 adjustable
8. Slit Height (mm): 1~ 8 adjustable
9. Slit Angle: 0~180°
10. Slit Inclination: 5° 、10°、15°、20° , 4 ranges choice
11. Light Spot Diameter (mm): Ø9、Ø8、Ø5、Ø3、Ø2、Ø1、Ø0.2
12. Filter: heat absorption, grey, red-free, cobalt blue
13. Illumination Bulb: 12V/30W halogen bulb
14. Voltage/ frequency: AC 220V ± 10%/60Hz ± 1Hz、AC 110V ± 10%/ 50Hz ± 1Hz
15. Power: 58VA
16. Electrical Safety Standard: Conform to standard IEC 601-1. Class 1 Type B
17. Whole Packing Volume: 0.21m3
18. Carton Number: 1
19. Total Weight: 27kgs
20. Optional accessories: Applanation Tonometer (R type and T type), Measuring Eyepiece, Beam Splitter, CCD Adapter, CCD, Camera , Teaching Tube, etc.

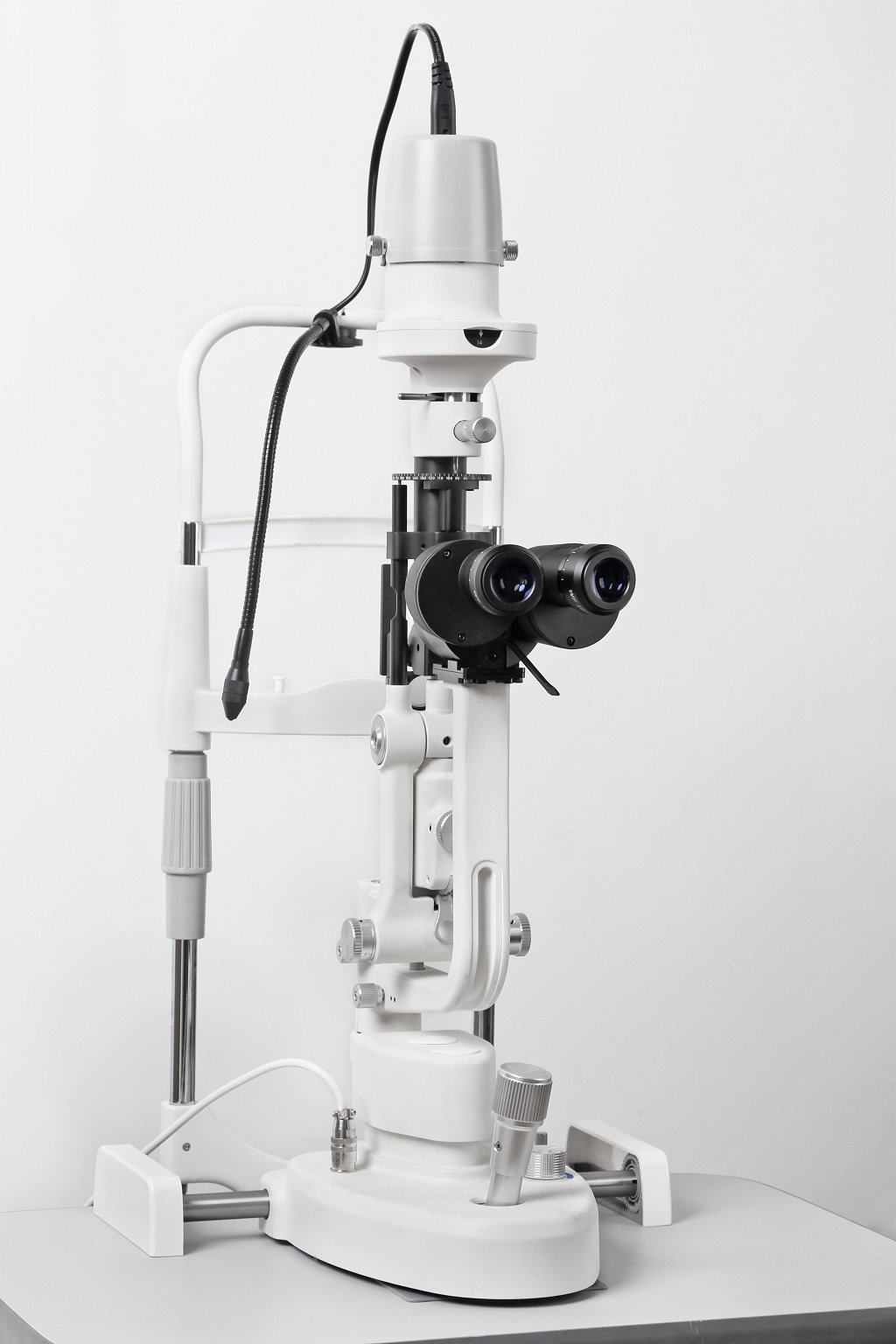

Slit Lamp VS-1051
Slit Lamp VS-1050
FEATURES:
1. The optical lenses are made of glass imported from Germany.
2. All the lens are multi-coated, mildewproof and anti- reflection.
3. The adaptor for Applanation Tonometer are universal.

MAIN TECHNICAL INDEXES:
1. Microscope Type: Converging Stereoscope
2. Magnification: three-step magnifications
3. Eye Piece: 10X /16X
4. Total Magnification and field of View(mm): 10 X (Ø 18 )、16 X ( Ø 14.5)、16 X ( Ø 11.25)、25.6 X ( Ø 9)
5. Range of Pupil Distance (mm): 55mm～82mm (10x)  51mm～78mm(16x)
6. Adjustment of Diopter: ±8D(10x)  ±10D(16x)
7. Slit Width (mm): 0 ~ 9 adjustable
8. Slit Height (mm): 1~ 8 adjustable
9. Slit Angle: 0~180°
10. Slit Inclination: 5° 、10°、15°、20° , 4 ranges choice
11. Light Spot Diameter (mm): Ø9、Ø8、Ø5、Ø3、Ø2、Ø1、Ø0.2
12. Filter: heat absorption, grey, red-free, cobalt blue
13. Illumination Bulb: 12V/30W halogen bulb
14. Voltage/ frequency: AC 220V ± 10%/60Hz ± 1Hz、AC 110V ± 10%/ 50Hz ± 1Hz
15. Power: 58VA
16. Electrical Safety Standard: Conform to Standard IEC 601-1.Class1Type B
17. Whole Packing Volume: 0.21m3
18. Carton Number: 1
19. Total Weight: 278kgs
20. Optional accessories: Applanation Tonometer (R type and T type), Measuring Eyepiece, Beam Splitter, CCD Adapter, CCD, Camera , Teaching Tube, etc.
MAIN TECHNICAL INDEXES
1. Microscope Type: Converging Stereoscope
2.Objective lens: 1X
3. Eye Piece: 10X /16X
4. Working distance: 80mm
5. Range of Pupil Distance: 48mm～70mm
6. Adjustment of Diopter: ±7D
7. Slit Width (mm): 0 ~10 adjustable
8. Light Spot Diameter (mm): Ø1、Ø3、Ø5、Ø10mm
9. Slit Angle: horizontal ±30°
10. Filter: Heat-absorbing filter, ND filter,Red-free,Cobalt Blue
11. Illumination Bulb: 3.3V/ 1W LED
12. Battery: 7.4V 680mAH Lithium, rechargeable
13. Working time: 5-6h
14. Whole Packing:40*20*23cm
15. Total Weight: 2.6kgs

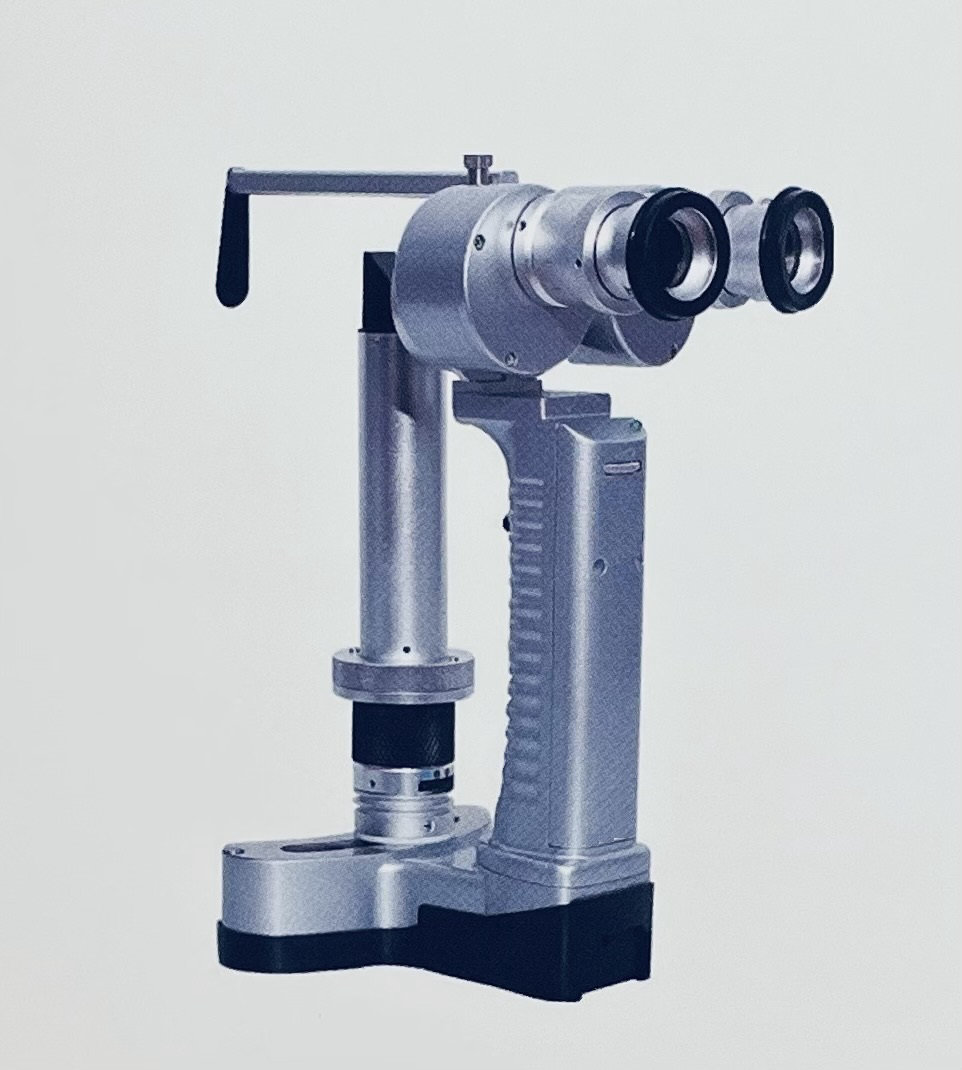

Portable Slit Lamp VS-15S1
MAIN TECHNICAL INDEXES
1. Microscope Type: Converging Stereoscope
2.Objective lens: 1X
3. Eye Piece: 10X /16X
4. Working distance: 80mm
5. Range of Pupil Distance: 48mm～70mm
6. Adjustment of Diopter: ±7D
7. Slit Width (mm): 0 ~10 adjustable
8. Light Spot Diameter (mm): Ø1、Ø3、Ø5、Ø10mm
9. Slit Angle: horizontal ±30°
10. Filter: Heat-absorbing filter, ND filter,Red-free,Cobalt Blue
11. Illumination Bulb: 3.3V/ 1W LED
12. Battery: 7.4V 680mAH Lithium, rechargeable
13. Working time: 5-6h
14. Whole Packing:40*20*23cm
15. Total Weight: 2.6kgs
16. Camera: Nikon
17. Display: 2.7”
18. Mobile phone adapter provided

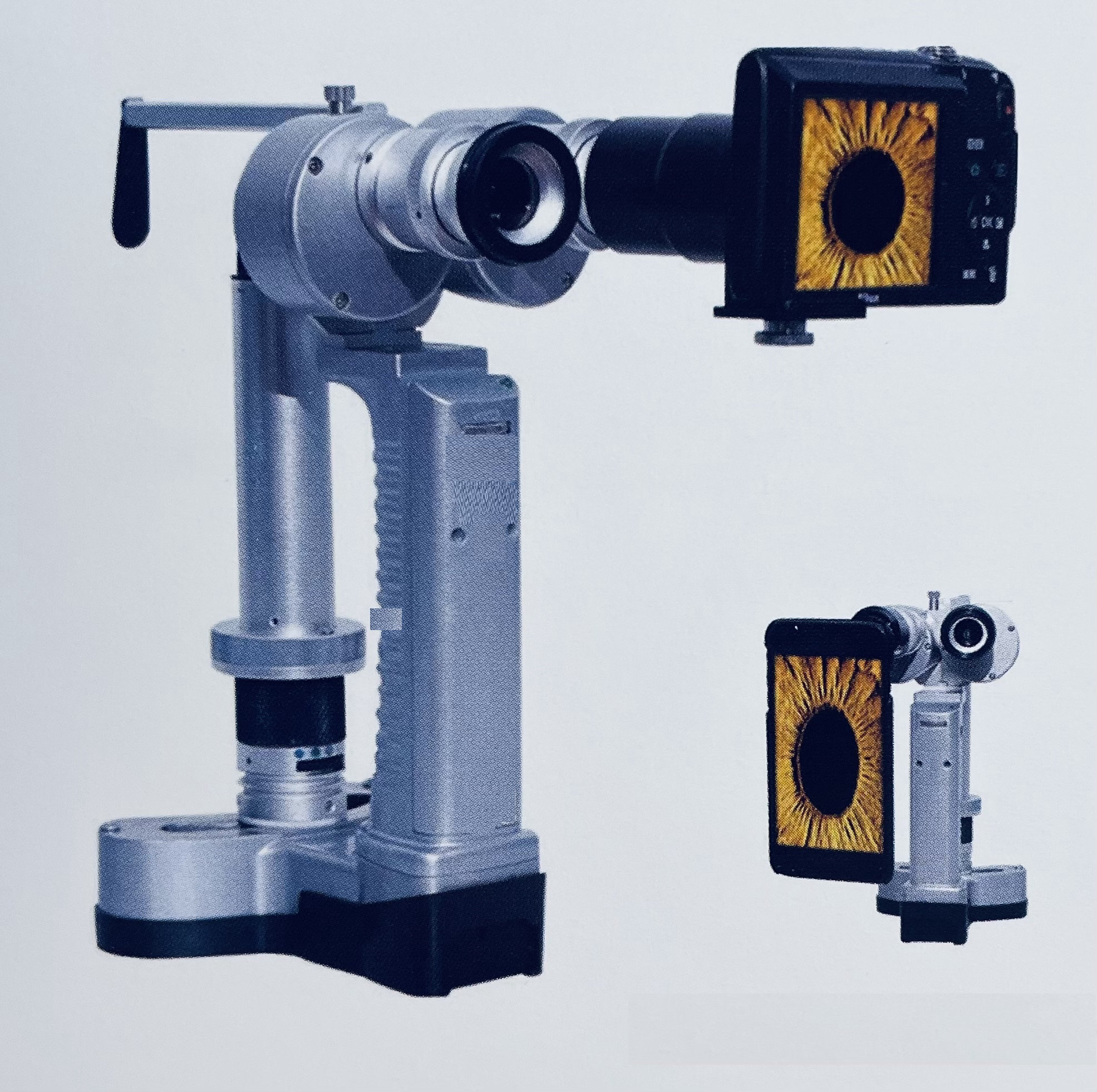

Portable Slit Lamp VS-15S3
